Empirical formula: C12H22O4
a: 13.105 Å
b: 4.921 Å
c: 10.183 Å
α (alpha): 90.00 °
β (beta): 97.40 °
γ (gamma): 90.00 °
Volume: 651.23 Å3
Space group: P21/c
Calculated density: 1.174 g/cm3
Z: 2
Temperature: 22.0 °C
Formula weight: 230.304 g/mole
R(F): 0.0360

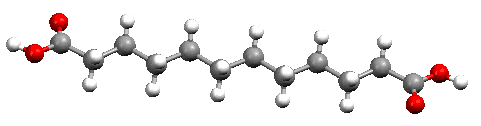

Common name: Dodecanedioic acid
CSD refcode: DECDAC02
Short description: Dodecanedioic acid is a white crystalline powder incompatible with strong oxidizing agents and reducing agents.
Citation of a publication: Acta Crystallogr.,Sect.B,38, (1982) p 643; M.Vanier, F.Brisse
Lab name: Common molecules
Sample provider: Obtained courtesy of the Cambridge Structural Database
Status: Complete, visible to public
Basic view...
More visualization options...
See other versions...
Repository Files:
50759.cif 50759.crt 50759.GIF 50759.gif 50759.pdb
50759.sdt
